Engine Specification |
|||||
|
Engine Model |
GN Type |
||||
|
Rated Engine Power |
20 HP / 15 KW |
||||
|
Rated Engine Speed |
2000-2500 rpm |
||||
|
Rotary Tiller Blade Speed (RPM) |
Low: 220, High: 280 |
||||
|
Low: 233, High: 291 |
|||||
|
Fuel Filter |
Duel Filter (Primary and Secondary) for saving engine from Fuel adulteration |
||||
|
Fuel Consumption |
1-1.5 liter Rated RPM, 2.4 liter per hour |
||||
|
Cooling System |
Radiator (made by Brass) |
||||
|
Turning Speed |
Low: 199-202 (According to driving speed) |
||||
|
Rotary tiller |
Width |
680mm |
|||
|
Number of Blades |
28 (2 set Right Hand and Left Hand Bend) |
||||
|
Main Farm Implements |
Anti-skid steel wheel -2 nos. (10 sprocket and extra bit); Rotary blade 2 set (1 for dry and other for wet land cultivation) |
||||
|
Starting System |
Manual Cranking Type |
||||
|
Air Cleaner |
Oil Bath Type |
||||
|
Packing Case dimensions |
116x108x108 cm |
||||
|
Lubricating Way |
Combined Pressure and Splashing |
||||
|
Net Weight / Gross Weight |
600 / 610 KG |
||||
|
Gear Box |
Six Speed Forward, Two Speed Reverse |
||||
|
Clutch |
Double Friction Flat of Constant Combination |
||||
|
Brake System |
Disc Type |
||||
|

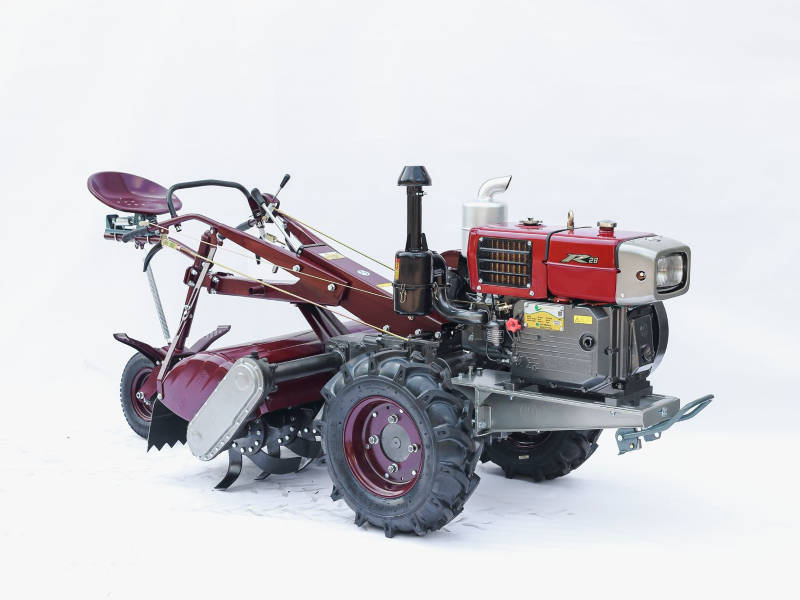

Power Tiller Model |
R24 |
||||
|
Engine Model |
ZS 1110 NL GN |
||||
|
Type |
Single Cylinder, Dual Purpose (Traction and Drive) |
||||
|
Overall Dimension (L X W X H) |
2680x1170x1250 mm |
||||
|
Wheel tread |
Rubber wheel |
570-810 |
|||
|
Iron wheel |
850-1090 |
||||
|
Tyres |
Rubber Front wheel |
6.00-12 |
|||
|
Rubber Rear wheel |
4.00-8 |
||||
|
Iron wheel |
6.00-8 |
||||
|
Clutch |
Clutch Link Length |
153 mm |
|||
|
Dia. of Clutch Rod |
8 mm |
||||
|
Length of Steering Lever |
255 mm |
||||
|
Minimum Ground Clearance |
210mm |
||||
|
Working Weight (with Rotary Tiller) |
560 kg |
||||
|
Power Tiller Speed (km/h) |
Forward |
For use of 183 mm belt pulley: 3.03, 5.52, 7.05, 9.27, 12.53, 21.03 |
|||
|
Reverse |
2.45, 5.5 |
||||
|
Turning speed |
Low:199 (According to driving speed) |
||||
|
Anti Skid Wheel Specification |
|||||
|
Inner Diameter |
700 mm |
||||
|
Width |
100 mm |
||||
|
Extension |
100mm |
||||
|
Weight |
42 kg |
||||
|
Rotary Tiller Specification |
|||||
|
Working width |
680 mm |
||||
|
Working depth |
150 mm |
||||
|
Diameter of the rotor |
550 mm |
||||
|
Blades |
Blended |
||||
|
Number of Blades |
24 (2 set - right hand and left hand bend) |
||||
|
Rotor Speed |
1st Speed 220-280 rpm 2nd Speed 233-291 rpm |
||||
|
Other Parts |
Adjustable Rear Cover |
||||
|
Adjustable Depth Control by Tail wheel |
|||||
|
A Riding chair |
|||||
|
Accessories |
1 set Tools and 1 set Fast Moving Spare Parts |
||||
